IEC60065 BND-1150 Rigid Test Probe With 50N/75N Force

Product Description：IEC60065 BND-1150 Rigid Test Probe With 50N/75N thrustModel:BND-1150 Rigid Test Probe With 50NBND1175 Rigid Test Probe With 75NBasic Introduction:1, According to : GB4706、IEC335、IEC61032、IEC600652，It is used to the protective performance check of the apparatus structures and shells which is easy to access live parts

BND-C IP3X Test Probe C (Test Probe C)

IEC60084 Test Probe Pin with 1N/20N force

Description

Product Description：

IEC60065 BND-1150 Rigid Test Probe With 50N/75N thrust

Model:

BND-1150 Rigid Test Probe With 50N

BND1175 Rigid Test Probe With 75N

Basic Introduction:

1, According to : GB4706、IEC335、IEC61032、IEC60065

2，It is used to the protective performance check of the apparatus structures and shells which is easy to access live parts

Technical parameters

1, Nodular Finger Diameter :12mm

2, Nodular Finger Length:80mm

3, Dam- board Diameter:50mm

Dynamometer:

BND-1150 type:10N-50N

BND-1175 type: 10N-75N

Application:

1, The finger of the Thrust Test Finger Probe can not touch the live parts or not close to hazardous parts, 50m,-20mmdam-board can not be entered into .

2,In the test requirements of preventing from accessing to the hazardous parts, Thrust Test Finger should be applied thrust

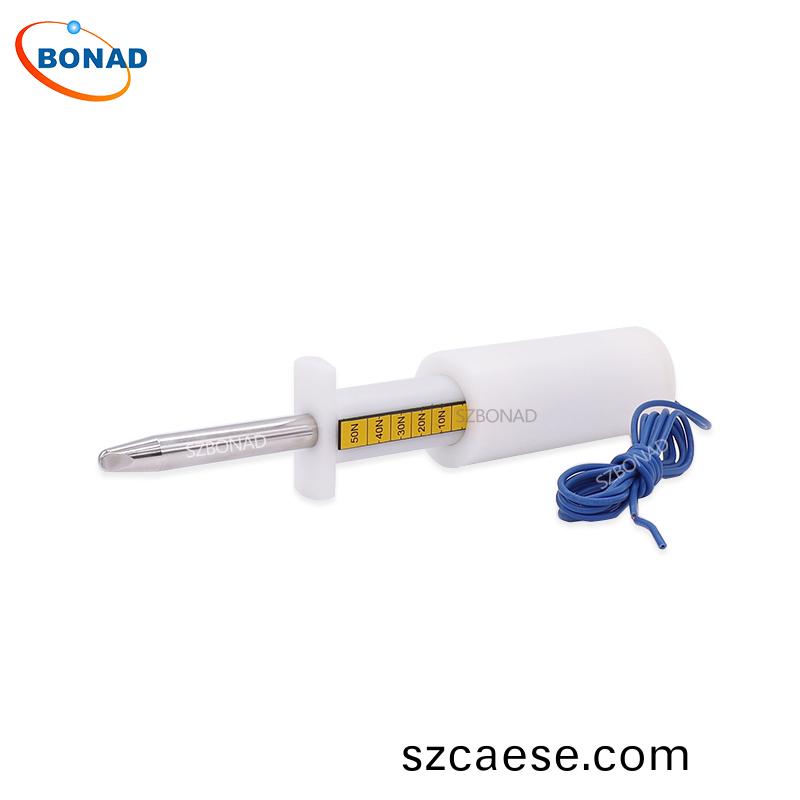

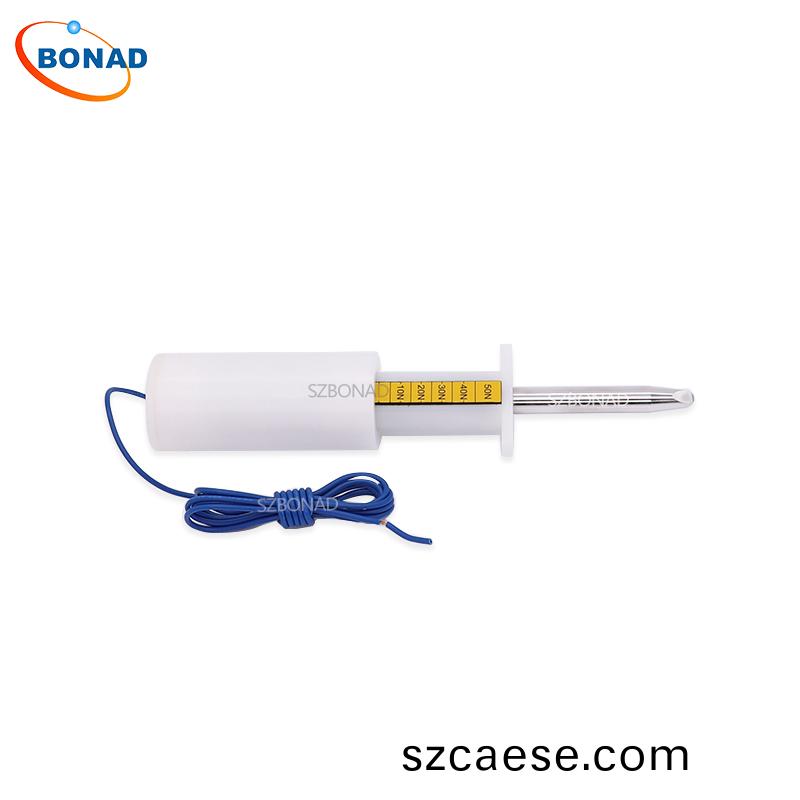

BND-1150 Rigid Test Probe With 50N Force

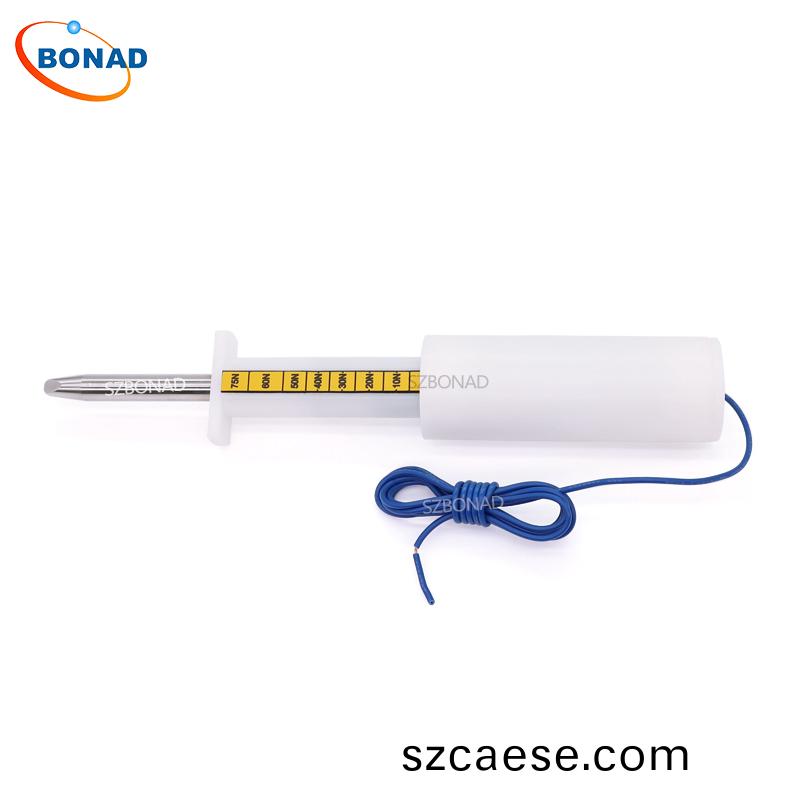

BND-1175 Rigid Test Probe With 75N Force
